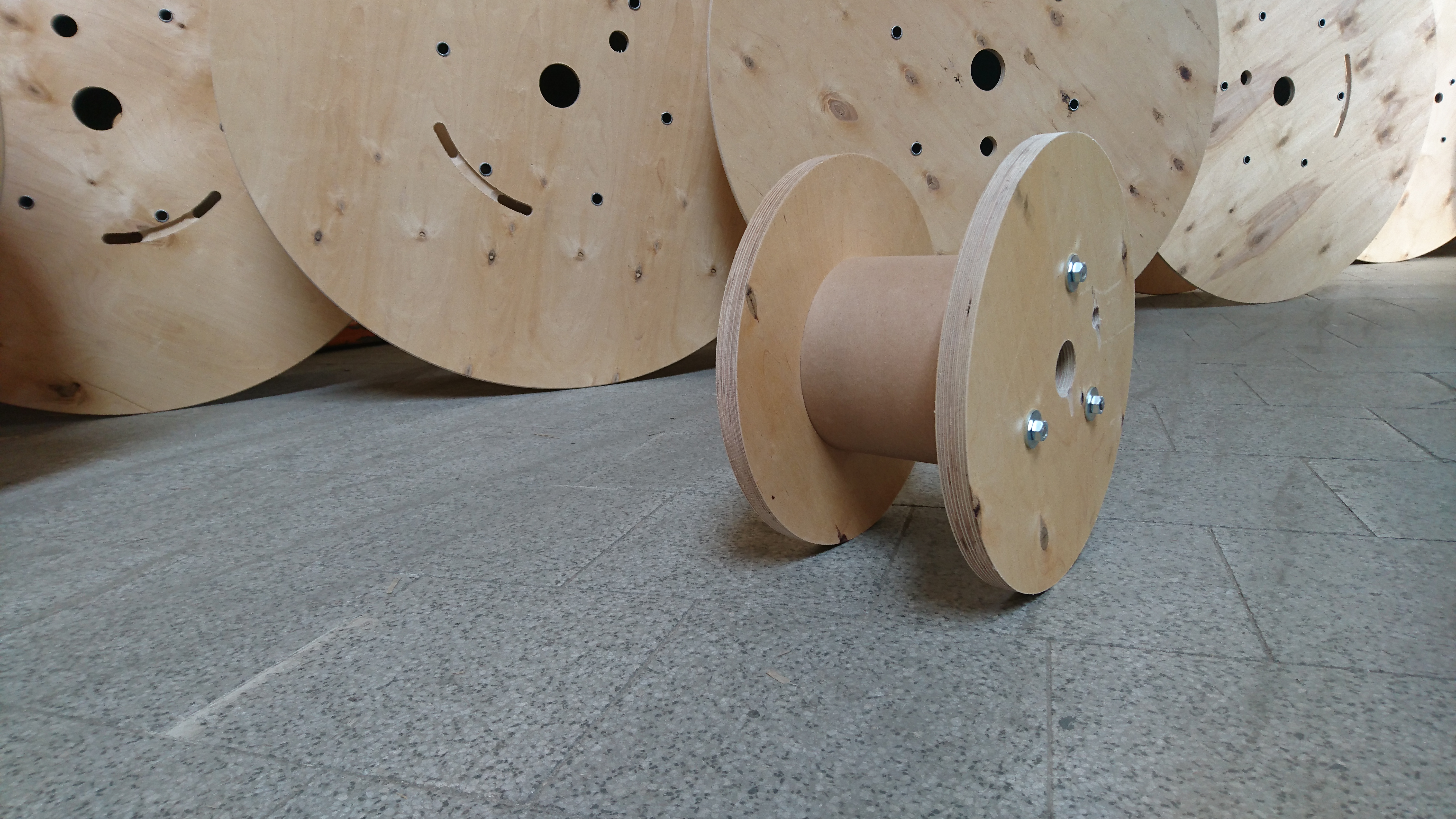

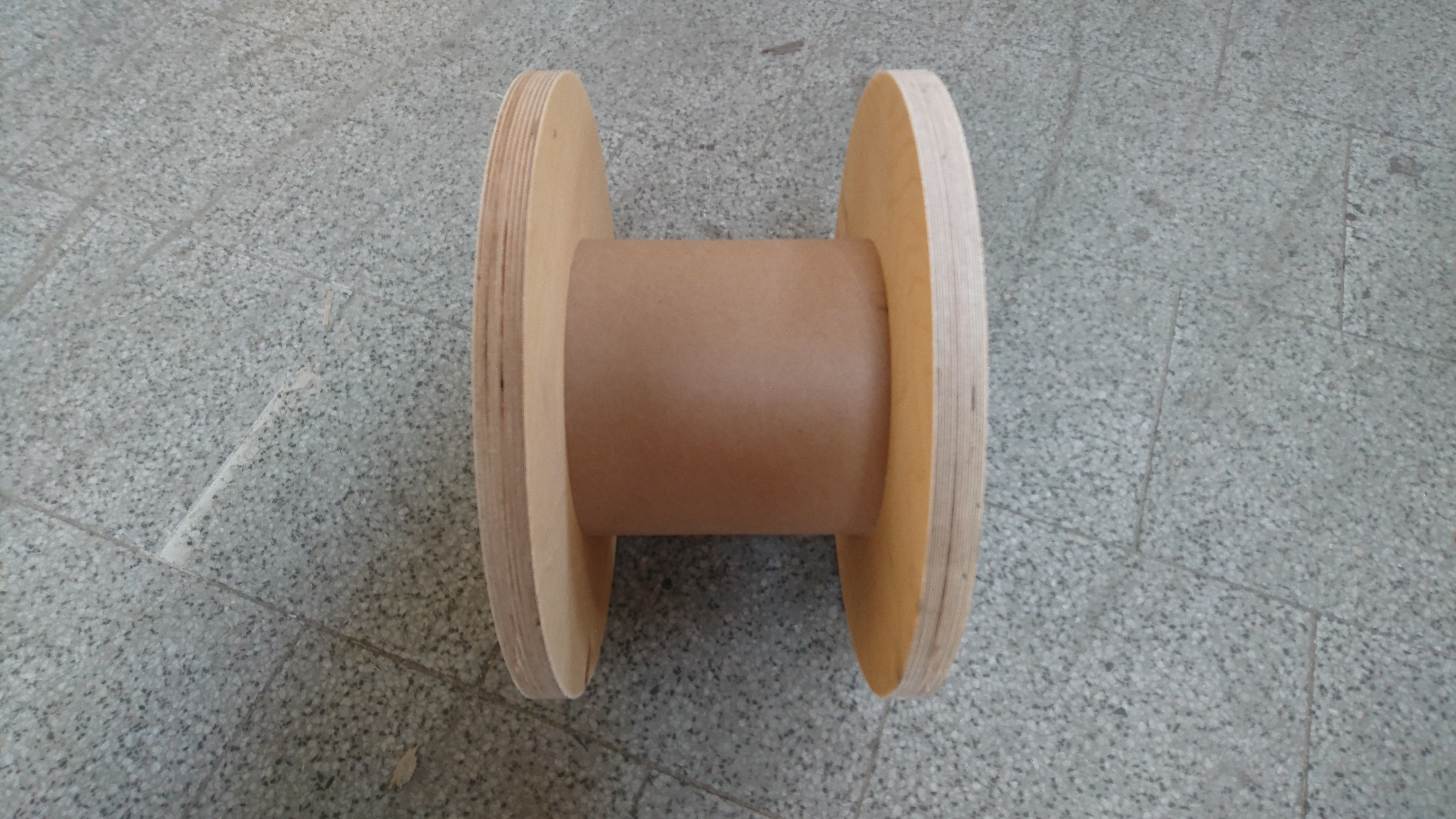

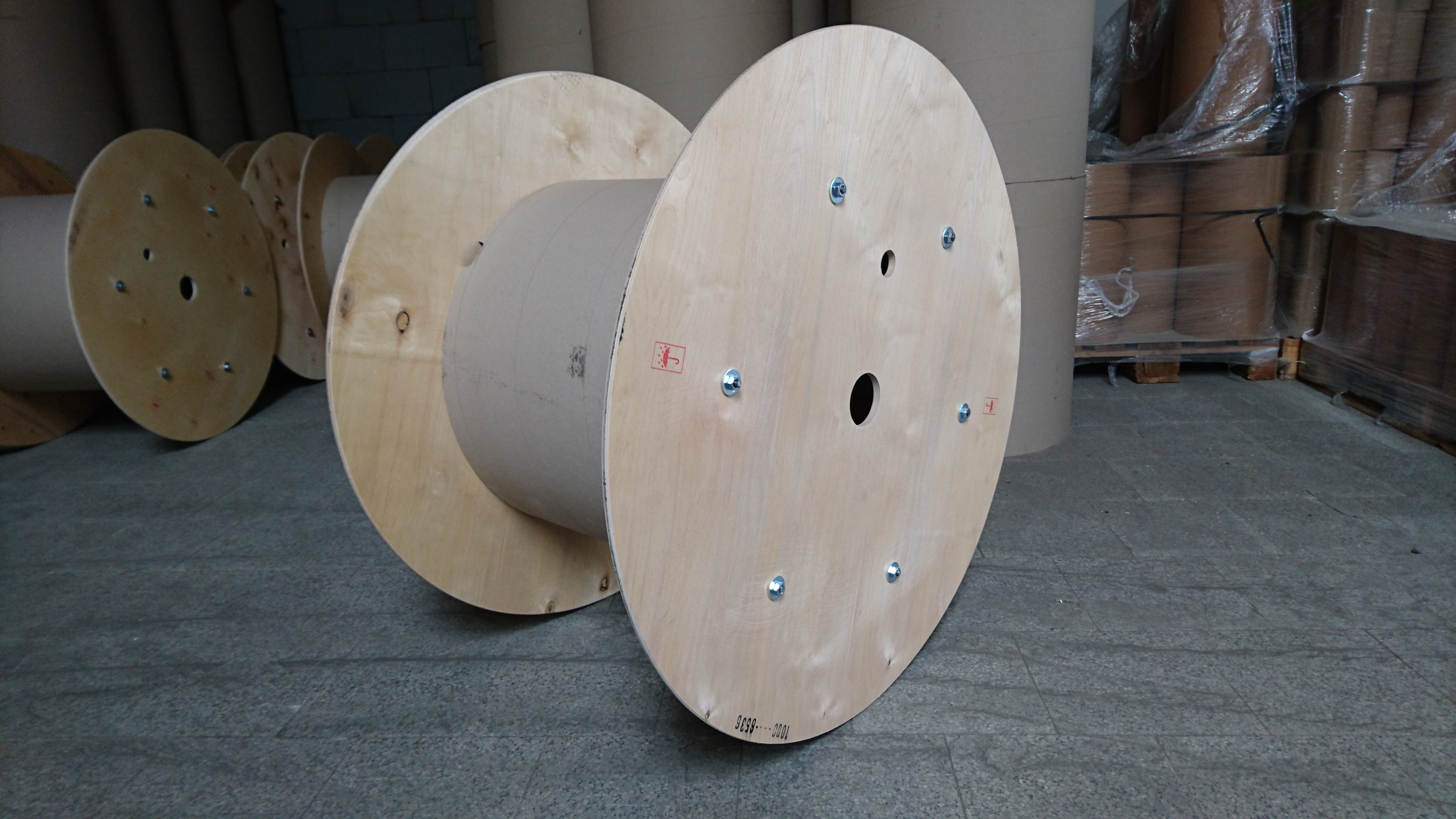

ONE-WAY DRUMS
GENERAL INFORMATION

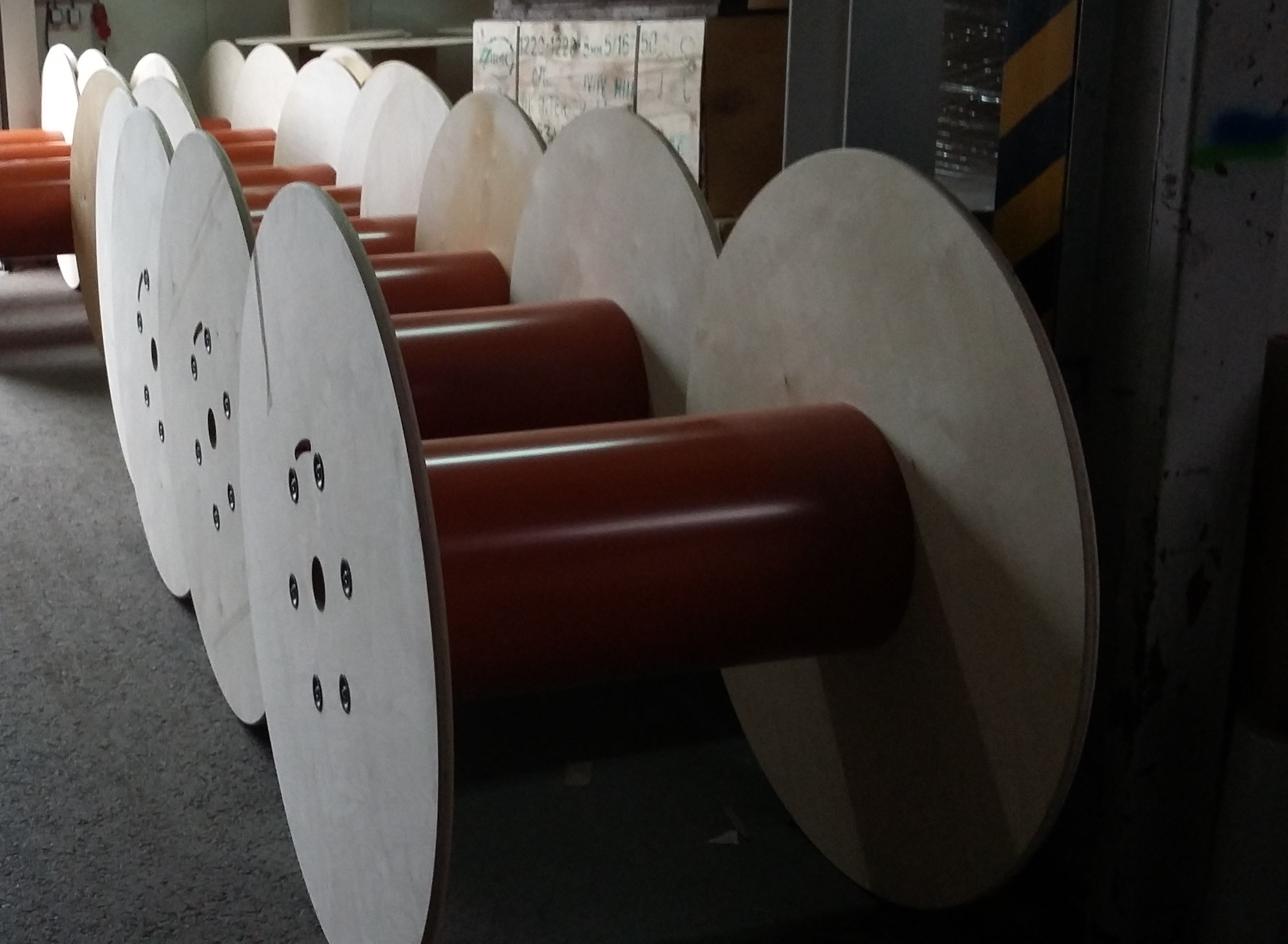

| INDICATIVE LIST OF PLYWOOD DRUMS | |
|---|---|
| PB 1. 300 x 100 x 200 (width of plywood 8) | |
|
diameter of flange: 300 mm diameter of core: 100 mm - paper tube inner width: 200 mm weight: cca 3 kg 3 x light tube diameter 20, central hole´s diameter 51mm |
|
| PB 2. 400 x 150 x 396 (width of plywood 8) | |
|
diameter of flange: 400 mm |
|
| PB 3. 500 x 150 x 396 (width of plywood 8) | |
|
diameter of flange end: 500 mm diameter of core: 150 mm - paper tube inner width: 396 mm weight: cca 6 kg 4 x light tube diameter 20, central hole´s diameter 56mm |
|
| PB 4. 500 x 238 x 305 (width of plywood 8) | |
|
diameter of flange: 500 mm diameter of core: 238 mm - paper tube inner width: 305 mm weight: cca 6 kg 4 x light tube diameter 20, central hole´s diameter 65mm |
|
| PB 5. 600 x 300 x 390 (width of plywood 12) | |
|
diameter of flange: 600 mm diameter of core: 300 mm - paper tube inner width: 390 mm weight: cca 11 kg 6 x light tube diameter 20, central hole´s diameter 81mm |
|
| PB 6. 755 x 300 x 390 (width of plywood 12) | |
|
diameter of flange: 755 mm diameter of core: 300 mm - paper tube inner width: 390 mm weight: cca 16 kg 6 x light tube diameter 20, central hole´s diameter 81mm |
|
| PB 7. 900 x 628 x 600 (width of plywood 12) | |
|
diameter of flange: 900 mm diameter of core: 628 mm - paper tube inner width: 600 mm weight: cca 25kg 6 x screw M 10, flat pads, central hole´s diameter 81mm |
|
| PB 8. 1000 x 628 x 600 (width of plywood 15) | |
|
diameter of flange: 1000 mm diameter of core: 628 mm - paper tube inner width: 600 mm weight: cca 29kg 6 x screw M 10, flat pads, central hole´s diameter 81mm |
|
| PB 9. 1200 x 628 x 600 (width of plywood 20) | |
|
diameter of flange: 1200 mm diameter of core: 628 mm - paper tube inner width: 600 mm weight: cca 40kg 6 x screw M 10, flat pads, central hole´s diameter 81mm |
|
| PB 10. 1400 x 628 x 740 (width of plywood 20) | |
|
diameter of flange: 1400 mm diameter of core: 628 mm - paper tube inner width: 740 mm weight: cca 47kg 6 x screw M 10, flat pads, central hole´s diameter 81mm |
|
For all offered plywood reels is used certificated material. After agreement we can use non-certificated materials.
The price of drums is based on the material intensity, the size of the drum and also on quantity.
We have about 80 types of plywood drums, but we are able to produce drums according to customer´s requirements that are based on presented documentation.
We can combine various materials:
Labeling:

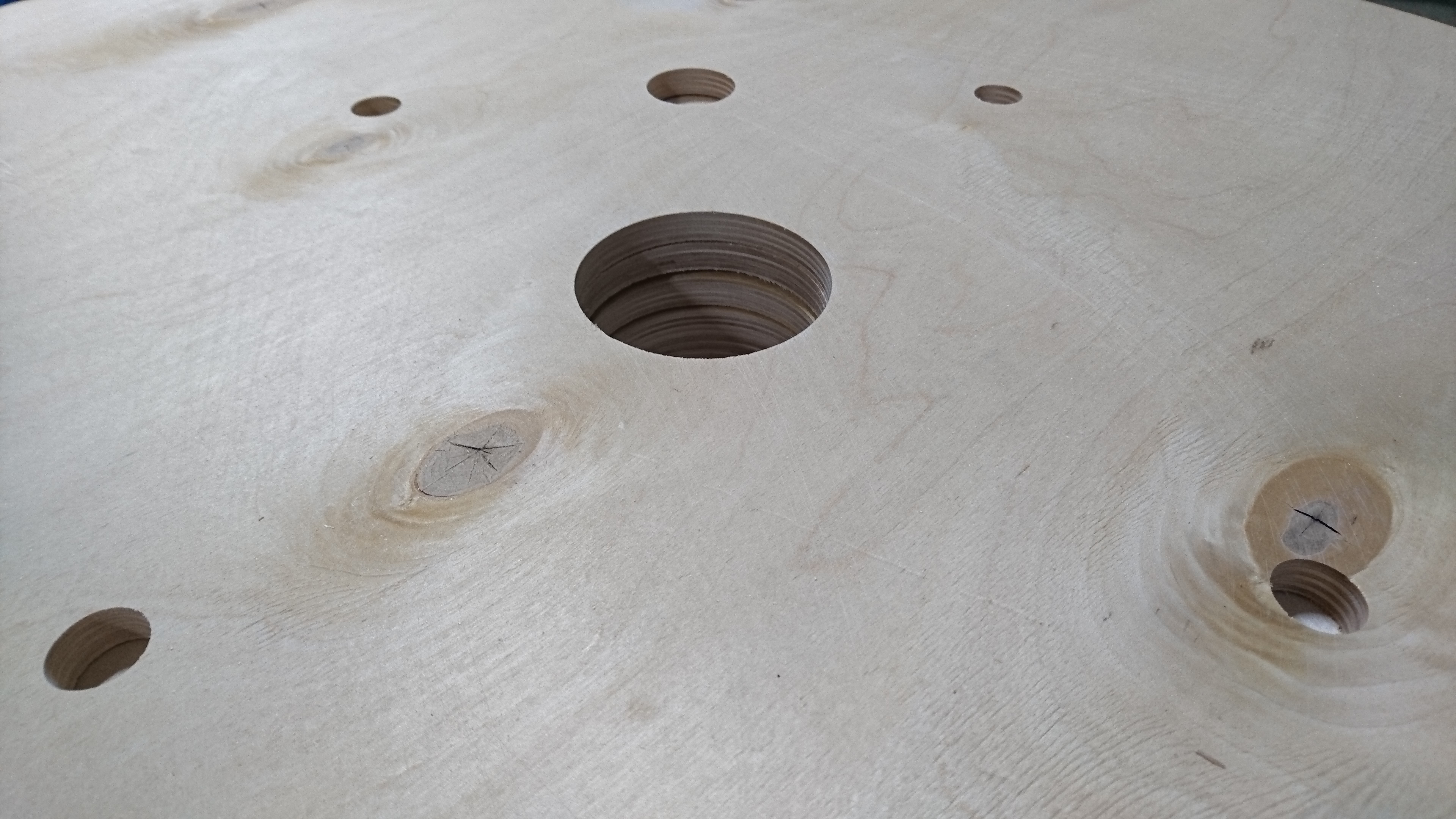

For marking plywood flanges we use industrial printer. Print color is blue, and the maximum height of the text and images is 70 mm. Interest or disinterest in the marking please specify in your order.

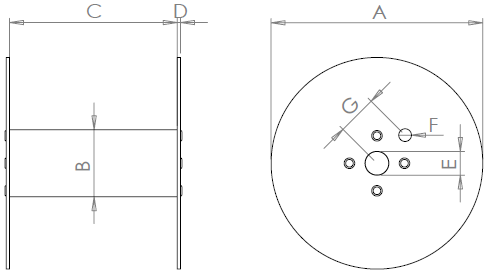

DIMENSIONS
| A: diameter of flange | E: diameter of central hole | |||||
| B: diameter of core | F: diameter of insertion hole | |||||
| C: inner width | G: distance of the center and the insertion hole | |||||
| D: thickness plywood | ||||||
MULTIPATH
GENERAL INFORMATIONLIST OF TYPES
| TYPES OF WOODEN DRUMS | |||
|---|---|---|---|
| Type | Diameter | Core diameter | Drum width |
| 8T | 800 | 540 | 590 |
| 10T | 1000 | 600 | 590 |
| 12T | 1200 | 630 | 630 |
| 15T | 1500 | 1000 | 945 |
| 18T | 1800 | 1000 | 1000 |
| 20T | 2000 | 1250 | 1000 |
| 22T | 2200 | 1300 | 1000 |
| 24T | 2500 | 1400 | 1200 |
| 25T | 2500 | 1400 | 990 |

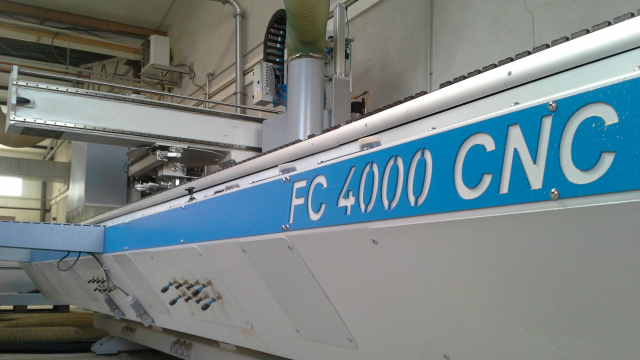

Wooden drums are manufactured according to technical conditions TP 3 / 2011KBB. The production proceeds on the automated line for wooden flanges. Drums are assembled in the area KBB Velke Mezirici or KBB Kladno or if costumer wants, we could deliver drums in disasseblemd state. In case of interest, we provide impregnation against a pests, which is often required for transport by sea.
We use lumber which is dried to 18-22 % of moisture, with certificate ISMP FAO 15. Here is our certificate.
Dimensions
Pic.1 Pic.2
A, D (Pic.1): flange diameter
F (Pic.1): insertion hole
R (Pic1): distance of centre and the driving hole
d1: diameter of the driving hole
B: barell width
S1,S2: thickness of flange
MULTIPATH
GENERAL INFORMATIONS
| PRICE LIST OF METAL DRUMS (without VAT) | |
|---|---|
| Diameter (mm) | Price on request |
| 1000 | |
| 1200 | |
| 1500 | |
| 1800 | |
| 2000 | |
| 2200 | |
| 2500 | |
Metal drums are made from pressed-sheet metal and are painted. The customer can make some special arrangements like gluing carpet fabric on the loading area of the cable and so on.
Renting of metal drums
To simplify the cooperation between us and our customers we have developed a renting system of metal drums. Therms and conditions are described in detail in the framework agreement for the purchase of drums. For more information, send email to info@kabelovebubny.cz.
Color - painting
For the production is used a self-fast drying paint based on a combination of special alkydurethan resins in organic solvents, with the addition of pigments and additives. It contains no heavy metals.

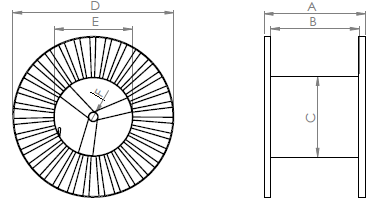

Dimensions:
A: drum width
B: barell width
C: core diameter
D: flange diameter
F: diameter of center hole
After mutual discussions with some cable manufacturers our company managed to unite the attitudes and conditions that are associated with previous approach in the management of the drums.
These new terms will apply to all traders who engage in the sale of cables and wires in the Czech republic and Slovakia. From this reason, we believe that this change will help to simplify and improve our services.
The condition for the participation of traders in this new service is signing a document - Contract for the repurchase of cable drums.
Avizo can be sent by e-mail - svozbubny@kabelovebubny.cz, info@kabelovebubny.cz or fax: +420 566 524 233
We have two trucks with trailers and one smaller truck. We try to maximize the use of these vehicles for import and export of drums. If our cars are busy, we use the services of other freight forwarding companies.
