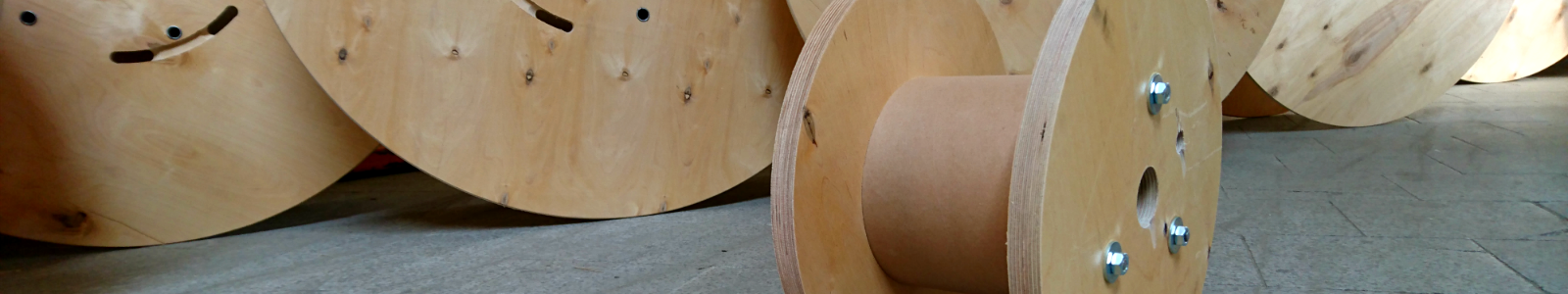

Plywood drums

A: diameter of flange

E: diameter of central hole

B: diameter of core

F: diameter of insertion hole

C: inner width

G: distance of the center and the insertion hole

D: thickness plywood

ONE-WAY DRUMS

GENERAL INFORMATION

INDICATIVE LIST OF PLYWOOD DRUMS
PB 1. 300 x 100 x 200 (width of plywood 8)
diameter of flange: 300 mm diameter of core: 100 mm - paper tube inner width: 200 mm weight: cca 3 kg 3 x light tube diameter 20, central hole´s diameter 51mm
PB 2. 400 x 150 x 396 (width of plywood 8)
diameter of flange: 400 mm diameter of core: 150 mm - paper tube inner width: 396 mm weight: cca 4 kg 4 x light tube diameter 20, central hole´s diameter 56mm
PB 3. 500 x 150 x 396 (width of plywood 8)
diameter of flange end: 500 mm diameter of core: 150 mm - paper tube inner width: 396 mm weight: cca 6 kg 4 x light tube diameter 20, central hole´s diameter 56mm
PB 4. 500 x 238 x 305 (width of plywood 8)
diameter of flange: 500 mm diameter of core: 238 mm - paper tube inner width: 305 mm weight: cca 6 kg 4 x light tube diameter 20, central hole´s diameter 65mm
PB 5. 600 x 300 x 390 (width of plywood 12)
diameter of flange: 600 mm diameter of core: 300 mm - paper tube inner width: 390 mm weight: cca 11 kg 6 x light tube diameter 20, central hole´s diameter 81mm
PB 6. 755 x 300 x 390 (width of plywood 12)
diameter of flange: 755 mm diameter of core: 300 mm - paper tube inner width: 390 mm weight: cca 16 kg 6 x light tube diameter 20, central hole´s diameter 81mm
PB 7. 900 x 628 x 600 (width of plywood 12)
diameter of flange: 900 mm diameter of core: 628 mm - paper tube inner width: 600 mm weight: cca 25kg 6 x screw M 10, flat pads, central hole´s diameter 81mm
PB 8. 1000 x 628 x 600 (width of plywood 15)
diameter of flange: 1000 mm diameter of core: 628 mm - paper tube inner width: 600 mm weight: cca 29kg 6 x screw M 10, flat pads, central hole´s diameter 81mm
PB 9. 1200 x 628 x 600 (width of plywood 20)
diameter of flange: 1200 mm diameter of core: 628 mm - paper tube inner width: 600 mm weight: cca 40kg 6 x screw M 10, flat pads, central hole´s diameter 81mm
PB 10. 1400 x 628 x 740 (width of plywood 20)
diameter of flange: 1400 mm diameter of core: 628 mm - paper tube inner width: 740 mm weight: cca 47kg 6 x screw M 10, flat pads, central hole´s diameter 81mm

For all offered plywood reels is used certificated material. After agreement we can use non-certificated materials.

The price of drums is based on the material intensity, the size of the drum and also on quantity.

We have about 80 types of plywood drums, but we are able to produce drums according to customer´s requirements that are based on presented documentation.

We can combine various materials:

core of wooden planks, plastic core
different diameters of core
stronger plywood flange for bigger carrying capacity
numbering, labeling, logos

Labeling:

For marking plywood flanges we use industrial printer. Print color is blue, and the maximum height of the text and images is 70 mm. Interest or disinterest in the marking please specify in your order.

DIMENSIONS
